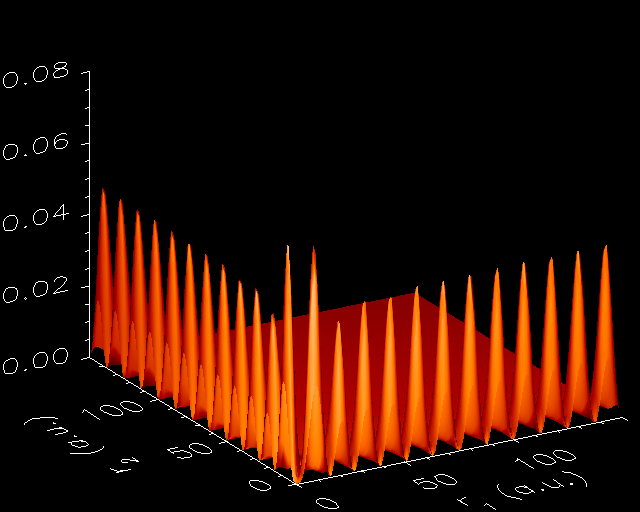

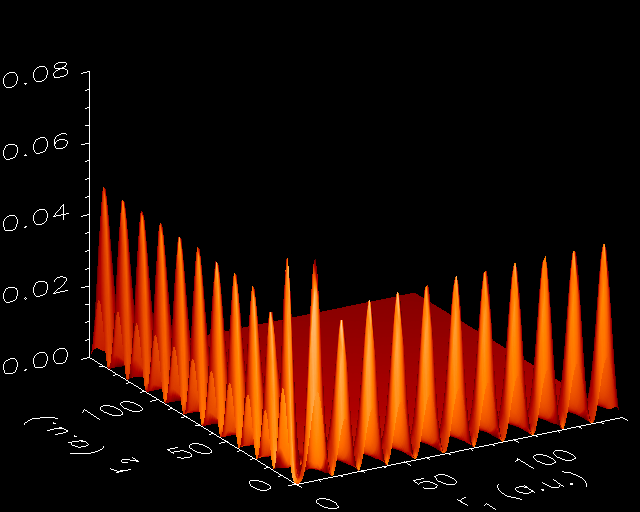

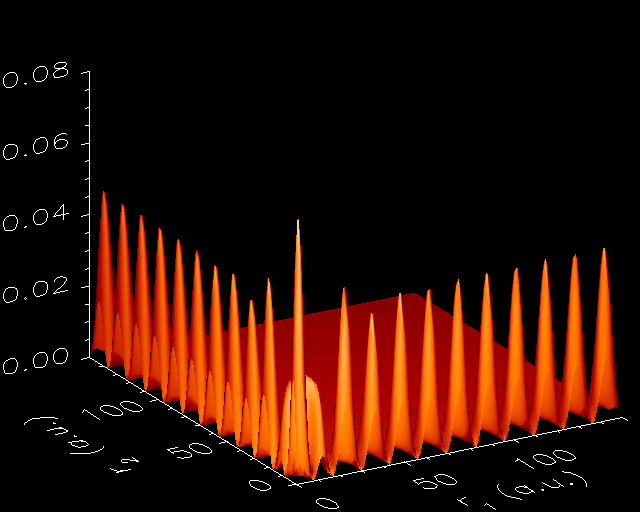

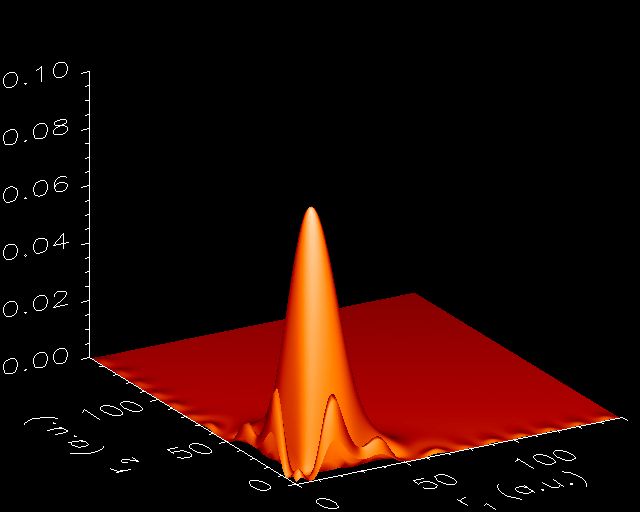

Figure 3:

Probability densities of the wave functions with eigenvalues close to the 2s$^2$ doubly excited autoionizing level energy, obtained with the direct diagonalization method. The energies of the levels are, from left to right and from up to down: $-0.844$; $-0.817$; $-0.718$, and $-0.612$ a.u.
